Real Exhaust Gas Simulation Catalytic Converter Evaluation System
CATA-9000 + Bex-8900C
CATA-9000 series
CATA-9000 can be simulated exhaust emission concentration , exhaust gas temperature and exhaust gas flow rate got from chassis dynamo meter or engine dynamo meter with high accuracy and high response.
It's allow to simulate exhaust gas concentration, exhaust gas temperature and exhaust gas flow rate. ......PAT
Full size simulation is available.
It's allow to simulate full size data which get from chassis dynamo meter or engine dynamo meter.
Easy control
It's allow to simulate only to resister real data to test file.
It's allow to edit the original data which customer already has got .
For example, it's allow to edit concentration and temperature of specified exhaust gases.
This allow to investigate generation mechanism of gas component which is subjected to study.
It's allow to simulate major exhaust gas emission test mode (LA-4,FTP,EU,JC08...)
High accuracy humidifier
accuracy: within +/- 0.20 vol% ...... PAT
Intelligent system controller and data acquisition system: BOP-8000C
This equipment realized intelligent system control for CATA system related device.
The skill less design performs test setting , sequence control, computing, output format, drawing figures, store data and communication correctly.
It's easy to operate simultaneously with other commercial application soft.
Simulation Video (Example)
【Test condition】
test vehicle: Gasoline 2500cc (GDI)
test mode: JC-08 (cold start)
Explanation for this Video：

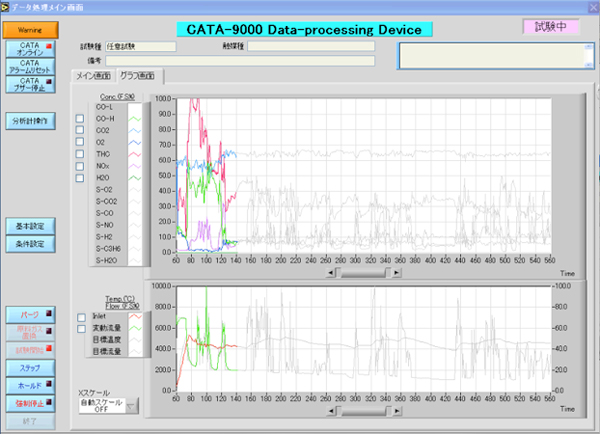

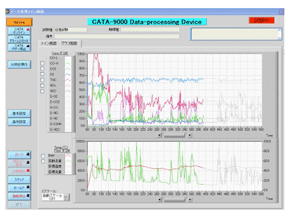

The upper graphs shows exhaust gas simulation.
4 components are simulated.
CO..green CO2..light blueO2..blueTHC..redNox..violet
The lower graph shows exhaust temperature. (1cm lower from top of catalyst)
.. Red
exhaust gas flow rate.. Green
Gray line shows real gas concentration (pre-catalyst), exhaust gas temperature and exhaust gas flow rate.
After simulation start, colored line (simulated data) follow the gray line. That means validation of simulation data. you can confirm simulation accuracy from this video.
