Complying with UN ECE R83
Best Instruments Bex-1000PNC is a system to measure the count of solid particles discharged from the engine continuously at high speed.
This system complying with UN ECE R83 conforms to the European Emission Gas Control Standard EUR05/6.
The system meets many requirements ranging from R&D to quality assurance and assessment for certification of engines..
◯Principle, of measurement: Condensation Particle Counter (CPC)
◯Measurement value: Solid particle count and concentration
◯Wide range of dilution: Primary dilution 15 to 3000 times, secondary dilution 1 to 11 times
◯Measurement range:0 to 10,000 pieces/cm3
◯Detection limit: 0.1 piece/cm3
◯Linearity: Linear regression R2 = 0.97 min.
◯Response time (T90): 5 sec max.
◯Automatically operable

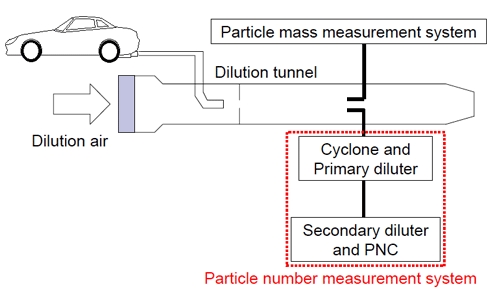

Example for measurment system
Detail dilution part
Dilution is performed two times. An evaporating tube is installed in area between the primary dilution and the secondary dilution to play the role of evaporating volatile matter contained in a sample.
Principle of measurement of particle count: Light scattering method
1. Target particles are condensed for growth by passing microparticles through supersaturated steam of butanol.
2. Laser beams are irradiated to the condensed particles for detection of scattered light pulses generated from individual particles.
3. The particle concentration is calculated form the pulse numbers.
